Borelli

Borelli Tecna

Please Contact us for a Customized Quote.

Free-standing or built-in rinsing machines from 1,000 to 16,000 bph

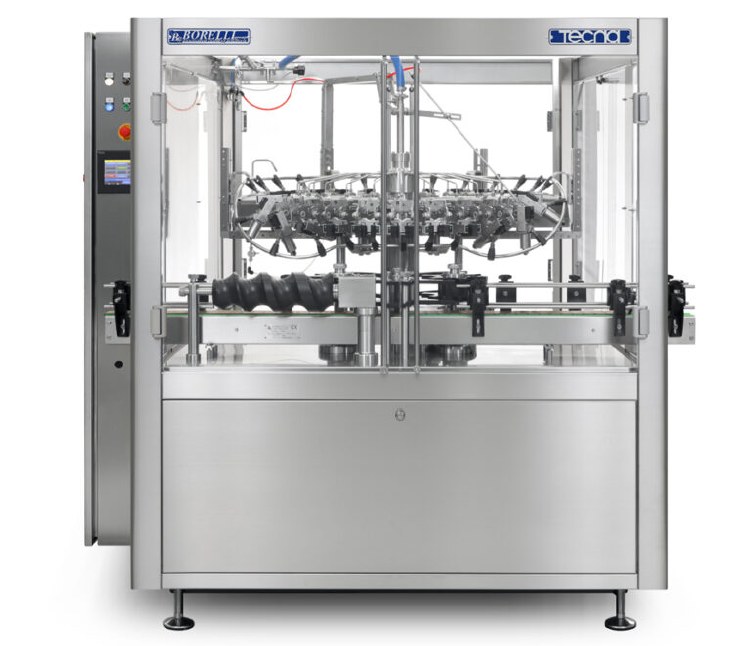

A modern bottling plant cannot leave out an efficient rinsing/sterilizing system for the bottles. TECNA line is the response of BORELLI group to this important need. TECNA line is a complete range of rinsing/air rinsing/sterilizing machines with high levels of technological contents characterized by extreme flexibility and very easy maintenance and use. The throughputs of the versions available range from 1,000 to 16,000 bph. The TECNA line rinsing machines are available both in free-standing version or built in the monoblocks of the EURO system series.





sample image

All TECNA’s quality...

The technological content in the rinsing machine is mainly concentrated in the bottle gripper. The gripper is obtained from stainless steel die-casting that are processed through CNC machines. The rubber pads are designed and worked on the profile of your bottles to guarantee a safe grip without damaging them. The substitution of the pads is simple, very rapid, and tool-free. The maintenance is reduced to the minimum and extremely easy.

Borelli Tecna Rinser

No bottle, no spray

The standard rinsing machine is equipped with valves allowing the jet of water or your rinsing solution only with the presence of the bottle.
This way their is not any rinsing solution waste and inconvenience due to free jets of water on the machine. Simply put if their is no bottle in a gripper the rinser cannot spary.

Bottling Line Rinser

Double treatment, nitrogen injection in the rinsing stage.

The configuration with double treatment, particularly interesting in the preparation of the bottle for the following filling stage, is available to order.
With this option it is possible to perform two treatments of the bottles: a first rinsing and dripping stage followed by an effective nitrogen injection into the bottle. In fact, neatly better results than with other injection systems currently available on the market can be obtained exploiting the rinsing machine to introduce nitrogen.

Borelli Bottling Line Rinser

...and all xp’s practicalness.

The xp version is characterized by the extreme simplicity of maintenance and use, even maintaining all the extraordinary features of the TECNA range. The gripper of stainless steel die-casting with twist overturn, the rubber pads worked on every single profile of bottle neck to obtain a safe grip without damaging the bottle, the electrical lifting facilitating the format change are only a part of the extraordinary characteristics of this rinsing machine. Also for the rinsing we succeeded in guaranteeing important technical contents without weighing on the costs.
