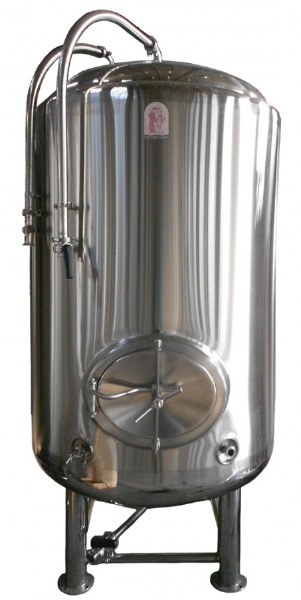

Tank Bright 20 BBL

20 Barrel Bright Tanks

Technical Characteristics:

• All AISI-304 Stainless Steel Construction
• Jacketed & Insulated
• Dual Zone Dimple Cooling Jacket
• Design Pressure 1~2 Bar
• Dish Top & Dish Bottom
• 4 Stainless Steel Legs with Leveling Ports

20 Barrel Bright Includes:

• Top Manway or Side Shadow less Manway
• Racking Port with Tri-Clover Butterfly Valve
• Discharge Port with Tri-Clover Butterfly Valve
• 2 Tri-Clover Outlets with Butterfly Valves
• CIP Arm and Spray Ball
• Sample Valve
• Pressure Gauge
• Safety Valve
• Thermowell with Tank Thermometer

Specifications:

• Working Capacity: 20 Barrels (620 Gallon)
• Inner Diameter: 1350 mm (53.1")
• PU Insulation: 50 mm (2")
• Outside Diameter: 1450 mm (57")
• Cylindrical Height: 1500 mm (59")
• Total Height: 2640 mm (104")
• Dimension: L x W x H 1450 x 1450 x 2640 mm (57" x 57" x 104")
• Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm Cladding: 1.5 mm
