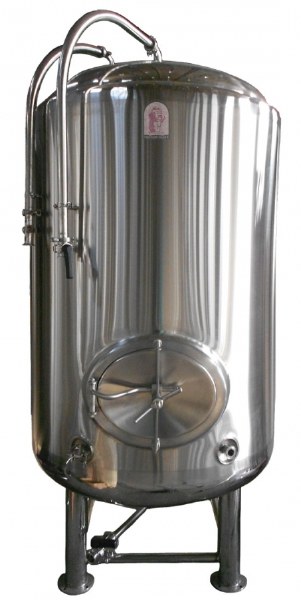

Tank Bright 70 BBL

70 Barrel Bright Tanks

Technical Characteristics:

• All AISI-304 Stainless Steel Construction
• Jacketed & Insulated
• Dual Zone Dimple Cooling Jacket
• Design Pressure 1~2 Bar
• Dish Top & Dish Bottom
• 4 Stainless Steel Legs with Leveling Ports

70 Barrel Bright Includes:

• Top Manway or Side Shadow less Manway
• Racking Port with Tri-Clover Butterfly Valve
• Discharge Port with Tri-Clover Butterfly Valve
• 2 Tri-Clover Outlets with Butterfly Valves
• CIP Arm and Spray Ball
• Sample Valve
• Pressure Gauge
• Safety Valve
• Thermowell with Tank Thermometer

Specifications:

• Working Capacity: 70 Barrels (2050 Gallons)
• Inner Diameter: 2050 mm (81")
• PU Insulation: 75 mm (3")
• Outside Diameter: 2200 mm (87")
• Cylindrical Height: 2000 mm (79")
• Total Height: 3420 mm (135")
• Dimension: L x W x H 2200 x 2200 x 3420 mm (87" x 87" x 135")
• Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
