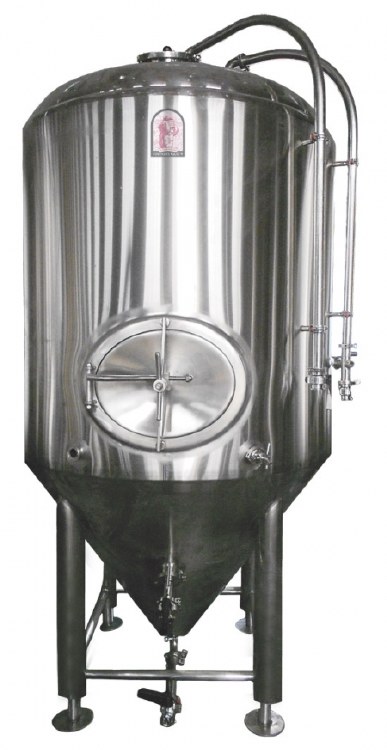

Tank Fermenter 100 BBL

100 Barrel Fermenters

Technical Characteristics:

• All AISI-304 Stainless Steel Construction
• Jacketed & Insulated
• Dual Zone Dimple Cooling Jacket
• Dish Top & 60° Conical Bottom
• 4 Stainless Steel Legs with Leveling Ports

100 Barrel Fermenter Includes:

• Top Manway or Side Shadow less Manway
• Racking Port with Tri-Clover Butterfly Valve
• Discharge Port with Tri-Clover Butterfly Valve
• 2 Tri-Clover Outlets with Butterfly Valves
• CIP Arm and Spray Ball
• Sample Valve
• Pressure Gauge
• Safety Valve
• Thermowell with Tank Thermometer

Specifications:

• Working Capacity: 100 Barrels (3100 Gallon)
• Inner Diameter: 2100 mm (82.7")
• PU Insulation: 75 mm (3")
• Outside Diameter: 2250 mm (88.6")
• Cylindrical Height: 3000 mm (118.1")
• Total Height: 5780 mm (227.6")
• Dimension: L x W x H 2250 x 2250 x 5780 mm (88.6" x 88.6" x 227.6")
• Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
