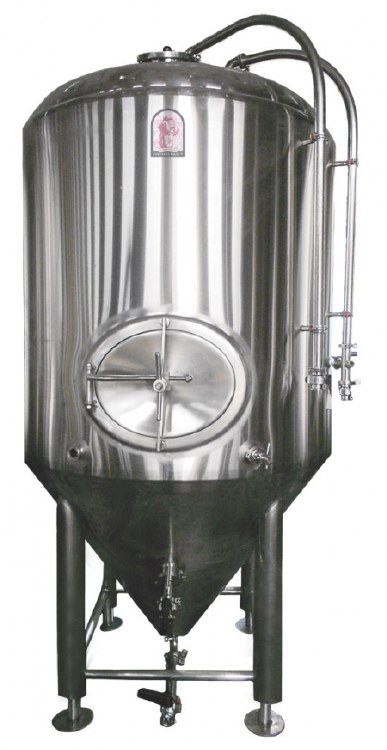

40 Barrel Fermenters

Technical Characteristics:
- All AISI-304 Stainless Steel Construction
- Jacketed & Insulated
- Dual Zone Dimple Cooling Jacket
- Dish Top & 60° Conical Bottom
- 4 Stainless Steel Legs with Leveling Ports
40 Barrel Fermenter Includes:
- Top Manway or Side Shadow less Manway
- Racking Port with Tri-Clover Butterfly Valve
- Discharge Port with Tri-Clover Butterfly Valve
- 2 Tri-Clover Outlets with Butterfly Valves
- CIP Arm and Spray Ball
- Sample Valve
- Pressure Gauge
- Safety Valve
- Thermowell with Tank Thermometer
Specifications:
- Working Capacity: 40 Barrels (1240 Gallon)
- Inner Diameter: 1750 mm (68.9")
- PU Insulation: 75 mm (3")
- Outside Diameter: 1900 mm (74.8")
- Cylindrical Height: 1500 mm (59.1")
- Total Height: 3910 mm (154")
- Dimension: L x W x H 1900 x 1900 x 3910 mm (75" x 75" x 154")
- Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
