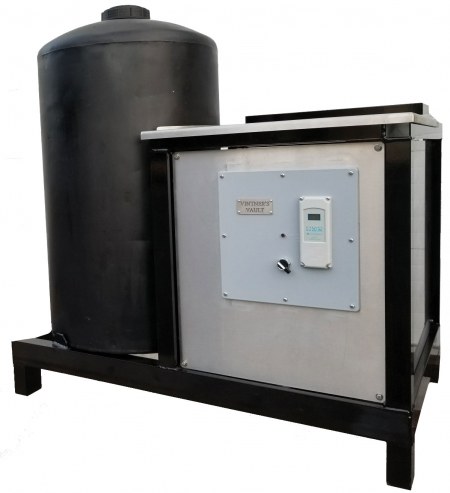

Glycol Heater Fire 61

This Glycol heater is designed as an on demand heater for use with existing tanks installed with thermostats and fluid control solenoids. The heater will only supply warm glycol when the tank mounted thermostat asks for it, by opening the solenoid valve. This glycol heater can be plumbed into a single tank, multiple tanks, or hard lines glycol systems.

Specifications:
-Up to 90,000 btu's
-3x 10,000 Watt Heating Elements
-Temperature Range 40 to 200 Degree F
-3/4 HP Pump delivers 35 psi max
-Glycol Capacity 63 gallon max (10 gallon minimum)
-Digital Display
-Heating Time: 1 F per minute per 50 gallons
-Requires: 24 amps of 480V 3 Phase 60 Hz
