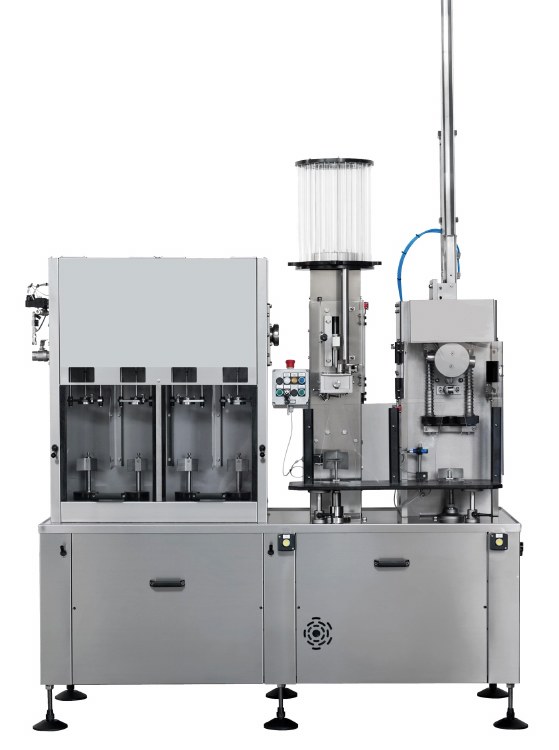

Bottle Filler Isobaric 4TG Model with Champagne Corker & Wire Hooder

Please Contact us for a Customized Quote.

Filler:

• Production: 200/300 btg / h (with optimal characteristics of the product, at constant pressure, pushed into the tank to fill tank with pump pressure or mono or membrane attached to the valves ofthe car), as influenced by the convenience of the operator.
• Bottle diameter fabricated: 50-114 mm. Bottle height workable: 150-380 mm.
• Air consumption: 38 l / h. about
• Product tank pressure: 3 to 3.5 Bar
• Air pressure (Bar): 6
• Air consumption at 6 bar (L / sec.): 0.30
• Ring gap filling: No. 4

Capping:

• Production: 500 btg / h
• Type: Pneumatic
• Number of capping heads: 1
• Type crown cap: from Ø 26 or Ø 29.
• Type of bottle: glass
• Measurements from 0.37 to 1.5 l bottles
• Installed power kW Compressed air 6 bar min.
