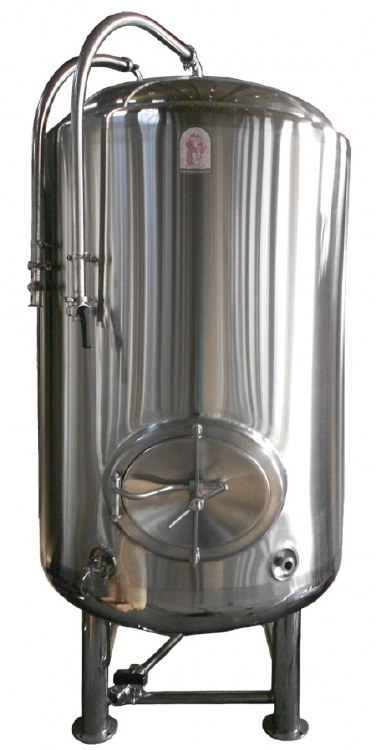

Tank Bright 10 BBL

10 Barrel Bright Tanks

Technical Characteristics:

• All AISI-304 Stainless Steel Construction
• Jacketed & Insulated
• Dual Zone Dimple Cooling Jacket
• Design Pressure 1~2 Bar
• Dish Top & Dish Bottom
• 4 Stainless Steel Legs with Leveling Ports

10 Barrel Bright Includes:

• Top Manway or Side Shadow less Manway
• Racking Port with Tri-Clover Butterfly Valve
• Discharge Port with Tri-Clover Butterfly Valve
• 2 Tri-Clover Outlets with Butterfly Valves
• CIP Arm and Spray Ball
• Sample Valve
• Pressure Gauge
• Safety Valve
• Thermowell with Tank Thermometer

Specifications:

• Working Capacity: 10 Barrels (310 Gallon)
• Inner Diameter: 1100 mm (43.3")
• PU Insulation: 50 mm (2")
• Outside Diameter: 1200 mm (47.2")
• Cylindrical Height: 1220 mm (48")
• Total Height: 2260 mm (89")
• Dimension: L x W x H 1200 x 1200 x 2260 mm (47.2" x 47.2" x 89")
• Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 1.5 mm
