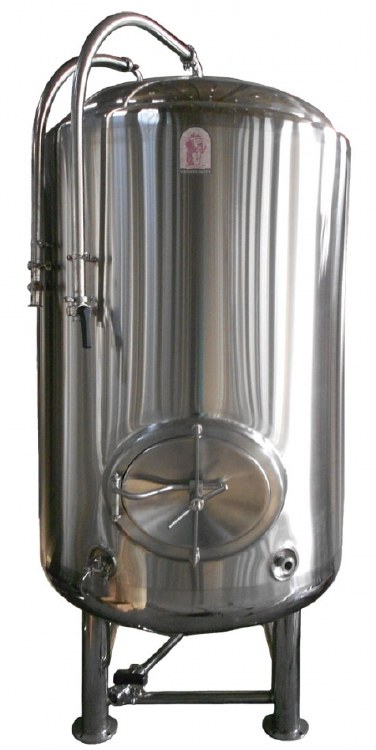

3 Barrel Bright Tanks

Technical Characteristics:
- All AISI-304 Stainless Steel Construction
- Jacketed & Insulated
- Dual Zone Dimple Cooling Jacket
- Design Pressure 1~2 Bar
- Dish Top & Dish Bottom
- 4 Stainless Steel Legs with Leveling Ports
3 Barrel Bright Includes:
- Top Manway or Side Shadow less Manway
- Racking Port with Tri-Clover Butterfly Valve
- Discharge Port with Tri-Clover Butterfly Valve
- 2 Tri-Clover Outlets with Butterfly Valves
- CIP Arm and Spray Ball
- Sample Valve
- Pressure Gauge
- Safety Valve
- Thermowell with Tank Thermometer
Specifications:
- Working Capacity: 3 Barrels (91 Gallons)
- Inner Diameter: 850 mm (33.5")
- PU Insulation: 50 mm (2")
- Outside Diameter: 900 mm (35.4")
- Cylindrical Height: 600 mm (23.6")
- Total Height: 1520 mm (60")
- Dimension: L x W x H 900 x 900 x 1520 mm (35.4" x 35.4" x 60")
- Thickness: Inner Shell: 2.5 mm Dimple Jacket: 1.5 mm Cladding: 1.5 mm
