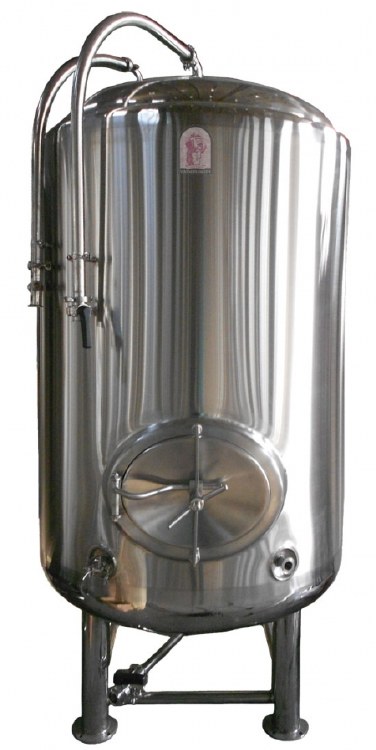

Tank Bright 30 BBL

30 Barrel Bright Tanks

Technical Characteristics:

• All AISI-304 Stainless Steel Construction
• Jacketed & Insulated
• Dual Zone Dimple Cooling Jacket
• Design Pressure 1~2 Bar
• Dish Top & Dish Bottom
• 4 Stainless Steel Legs with Leveling Ports

30 Barrel Bright Includes:

• Top Manway or Side Shadow less Manway
• Racking Port with Tri-Clover Butterfly Valve
• Discharge Port with Tri-Clover Butterfly Valve
• 2 Tri-Clover Outlets with Butterfly Valves
• CIP Arm and Spray Ball
• Sample Valve
• Pressure Gauge
• Safety Valve
• Thermowell with Tank Thermometer

Specifications:

• Working Capacity: 30 Barrels (930 Gallon)
• Inner Diameter: 1600 mm (63")
• PU Insulation: 75 mm (3")
• Outside Diameter: 1750 mm (69")
• Cylindrical Height: 1500 mm (59")
• Total Height: 2740 mm (106.3")
• Dimension: L x W x H 1750 x 1750 x 2740 mm (69" x 69" x 108")
• Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
