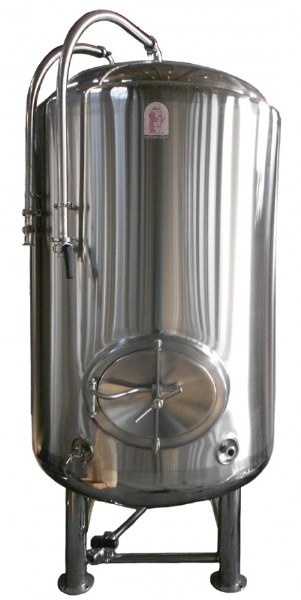

Tank Bright 40 BBL

$22,250.00 This item requires freight.

add to cart

40 Barrel Brewery Bright Tanks -----Working Capacity 1240 Gallons

40 Barrel Bright Tanks

10 Barrel Brewery Fermenter Tank

Technical Characteristics:

  • All AISI-304 Stainless Steel Construction
  • Jacketed & Insulated
  • Dual Zone Dimple Cooling Jacket
  • Design Pressure 1~2 Bar
  • Dish Top & Dish Bottom
  • 4 Stainless Steel Legs with Leveling Ports

40 Barrel Bright Includes:

  • Top Manway or Side Shadow less Manway
  • Racking Port with Tri-Clover Butterfly Valve
  • Discharge Port with Tri-Clover Butterfly Valve
  • 2 Tri-Clover Outlets with Butterfly Valves
  • CIP Arm and Spray Ball
  • Sample Valve
  • Pressure Gauge
  • Safety Valve
  • Thermowell with Tank Thermometer

Specifications:

  • Working Capacity: 40 Barrels (1240 Gallon)
  • Inner Diameter: 1750 mm (69")
  • PU Insulation: 75 mm (3")
  • Outside Diameter: 1900 mm (75")
  • Cylindrical Height: 1500 mm (59")
  • Total Height: 2800 mm (110.2")
  • Dimension: L x W x H 1900 x 1900 x 2800 mm (75" x 75" x 110.2")
  • Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
