AG Inox

4000L Closed Top Sloped Bottom Extended Leg

$15,775.00

add to cart

4,000 Liter (1,056 gal) Closed Top Sloped Bottom Short Leg Tank

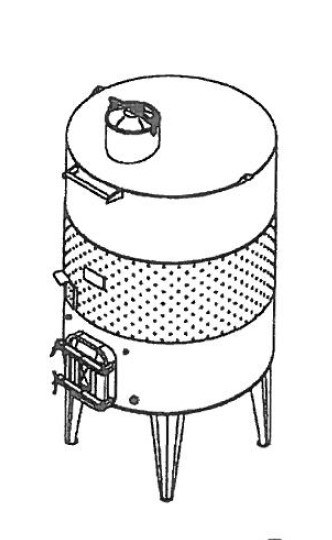

4,000 Liter Closed Top Sloped Bottom Tank with Extended Legs




4000L Closed Top Extended Legs

Click Image to Enlarge

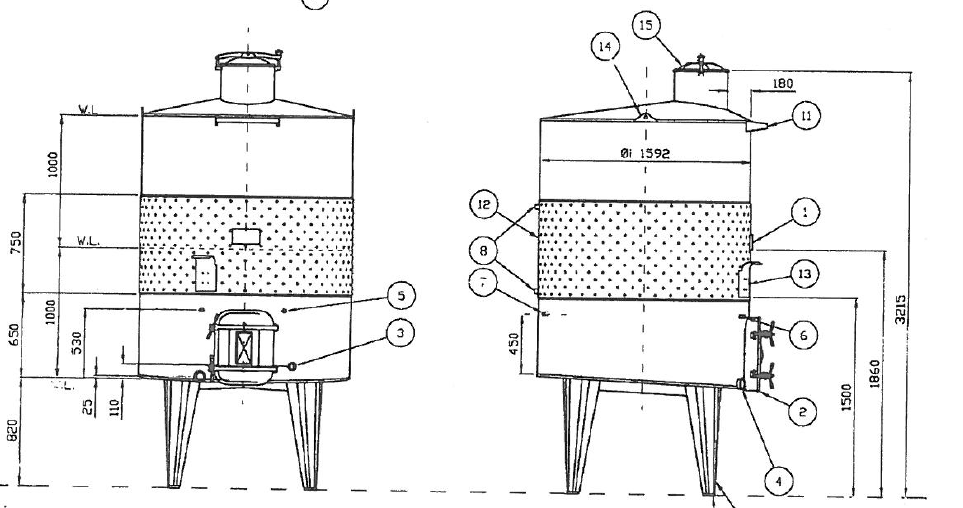

Legend:

 1. Name Plate

 2. Rectangle Manway 400 x 530

 3. 2" TC Racking Port

 4. 3" TC Drain Port

 5. DIN Sample Tap

 6. Tank Thermometer (Analog)

 7. Thermal Probe




 8. Cooling Jacket Connection 3/4"FNPT

 9. Extended Legs 800 mm (31.5")

10. Base Plate with Leveling Feet

11. Ladder Rest

12. High Flow Jacket

13. Ice Shield

14. Lifting Hooks

15. Top Manway Æ400 mm




This Tank is Currently in Stock and Ready to Ship from Our Texas Locatio
