AG Inox

6000L Closed Top Sloped Bottom Extended Leg

$18,425.00

add to cart

6,000 Liter (1,584 gal) Closed Top Sloped Bottom Short Leg Tank

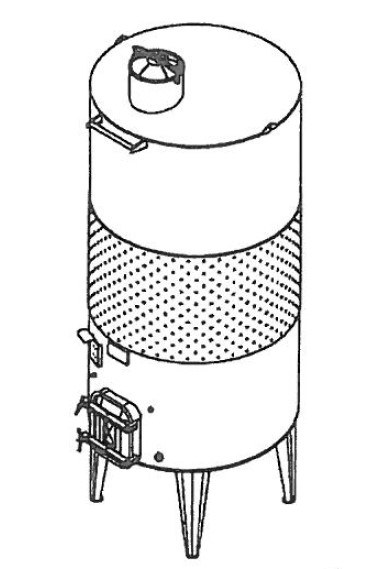

6,000 Liter Closed Top Sloped Bottom Tank with Extended Legs


6000L Closed Top Extended Leg

Click Image To Enlarge

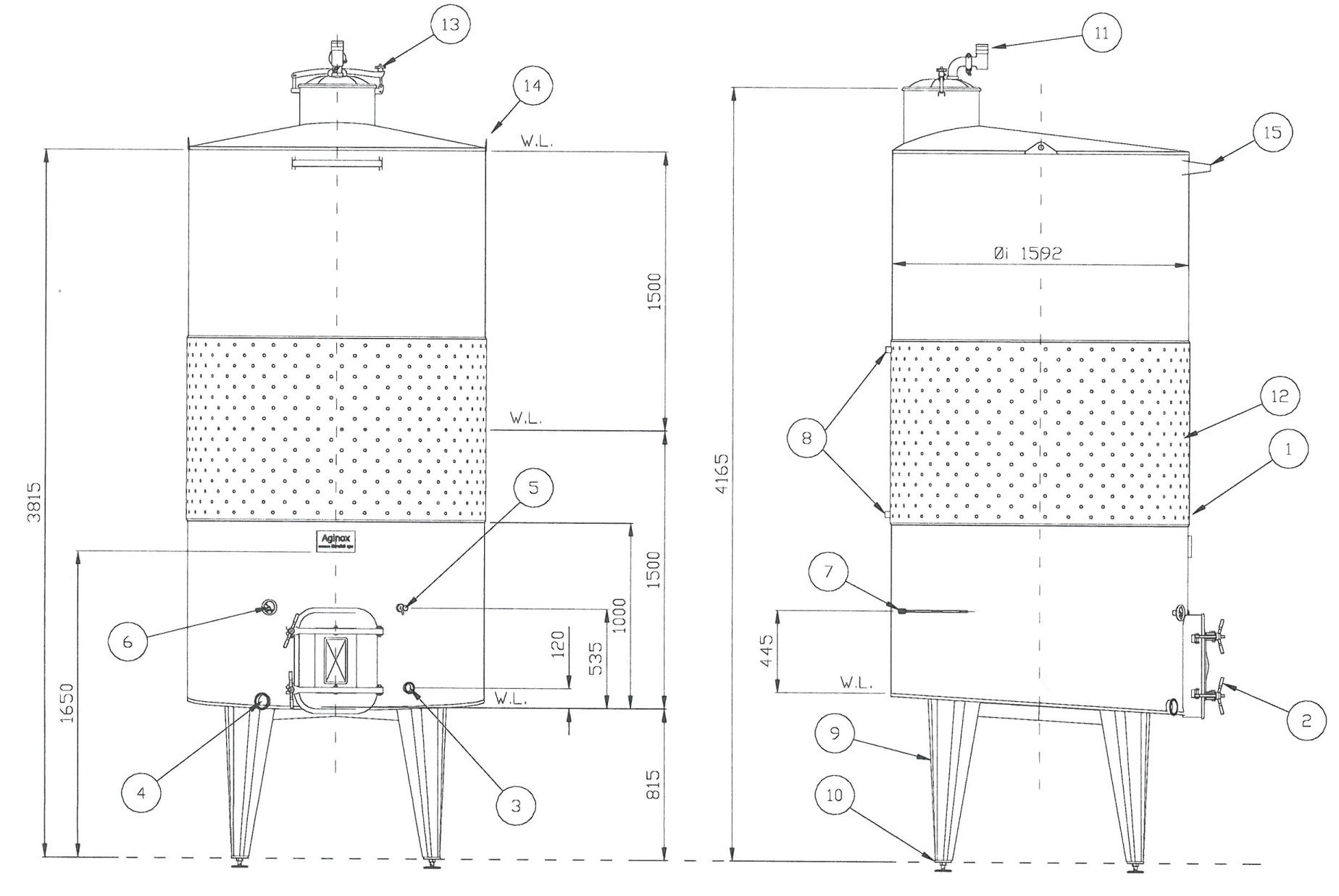

Legend:

 1. Name Plate

 2. Rectangle Manway 400 x 530

 3. 2" TC Racking Port

 4. 3" TC Drain Port

 5. DIN Sample Tap

 6. Tank Thermometer (Analog)

 7. Thermal Probe




 8. Cooling Jacket Connection 3/4"FNPT

 9. Extended Legs 800 mm (31.5")

10. Base Plate with Leveling Feet

11. Stainless Steel Tank Vent

12. 100 cm High Flow Jacket

13. Top Manway Æ400 mm

14. Lifting Hooks

15. Ladder Rest




This Tank is Currently in Stock and Ready to Ship from Our Texas Location
