Tank Fermenter 15 BBL

$11,500.00 This item requires freight.

add to cart

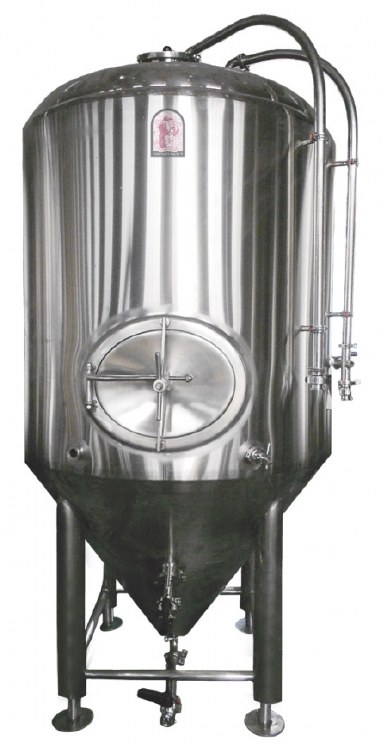

15 Barrel Brewery Fermenter Tanks Working Capacity 465 Gallons

15 Barrel Fermenters



Technical Characteristics:

  • All AISI-304 Stainless Steel Construction
  • Jacketed & Insulated
  • Dual Zone Dimple Cooling Jacket
  • Dish Top & 60° Conical Bottom
  • 4 Stainless Steel Legs with Leveling Ports

15 Barrel Fermenter Includes:

  • Top Manway or Side Shadow less Manway
  • Racking Port with Tri-Clover Butterfly Valve
  • Discharge Port with Tri-Clover Butterfly Valve
  • 2 Tri-Clover Outlets with Butterfly Valves
  • CIP Arm and Spray Ball
  • Sample Valve
  • Pressure Gauge
  • Safety Valve
  • Thermowell with Tank Thermometer

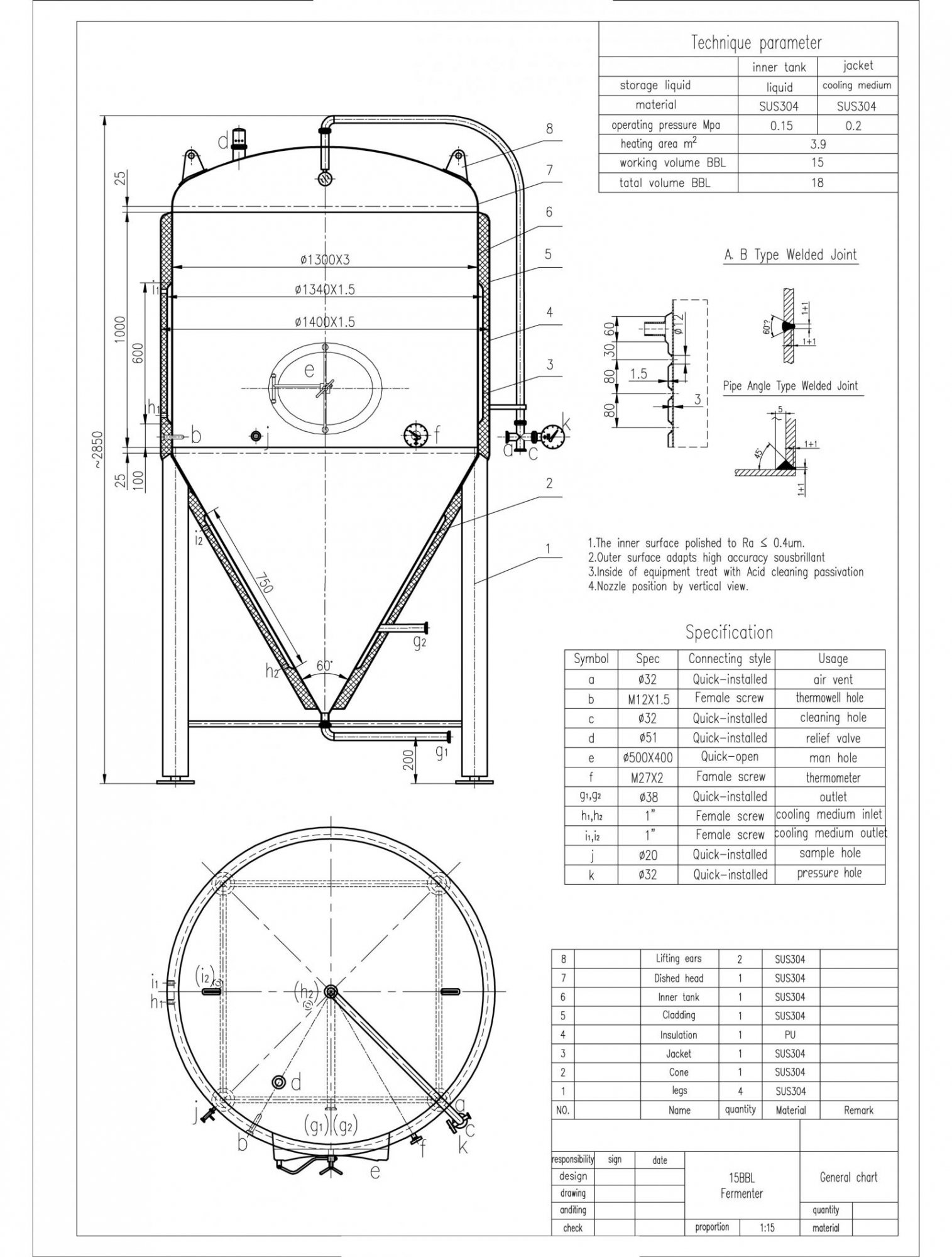

Specifications:

  • Working Capacity: 15 Barrels (465 Gallon)
  • Inner Diameter: 1300 mm (51.2")
  • PU Insulation: 50 mm (2")
  • Outside Diameter: 1400 mm (55.1")
  • Cylindrical Height: 1000 mm (39.4")
  • Total Height: 2390 mm (94.1")
  • Dimension: L x W x H 1400 x 1400 x 2390 mm (55.1" x 55.1" x 94.1")
  • Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 1.5 mm
