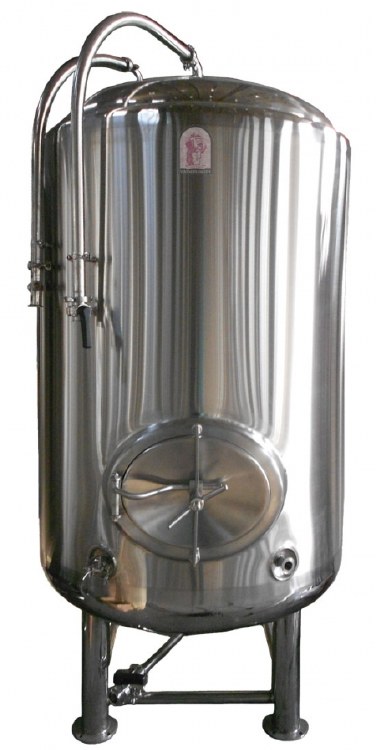

90 Barrel Bright Tanks

Technical Characteristics:
- All AISI-304 Stainless Steel Construction
- Jacketed & Insulated
- Dual Zone Dimple Cooling Jacket
- Design Pressure 1~2 Bar
- Dish Top & Dish Bottom
- 4 Stainless Steel Legs with Leveling Ports
90 Barrel Bright Includes:
- Top Manway or Side Shadow less Manway
- Racking Port with Tri-Clover Butterfly Valve
- Discharge Port with Tri-Clover Butterfly Valve
- 2 Tri-Clover Outlets with Butterfly Valves
- CIP Arm and Spray Ball
- Sample Valve
- Pressure Gauge
- Safety Valve
- Thermowell with Tank Thermometer
Specifications:
- Working Capacity: 90 Barrels (2790 Gallons)
- Inner Diameter: 2100 mm (82.7")
- PU Insulation: 75 mm (3")
- Outside Diameter: 2250 mm (88.6")
- Cylindrical Height: 2700 mm (106.3")
- Total Height: 4140 mm (163")
- Dimension: L x W x H 2250 x 2250 x 4140 mm (88.6" x 88.6" x 163")
- Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
