Tank Fermenter 5 BBL

5 Barrel Fermenters

Technical Characteristics:

• All AISI-304 Stainless Steel Construction
• Jacketed & Insulated
• Dual Zone Dimple Cooling Jacket
• Dish Top & 60° Conical Bottom
• 4 Stainless Steel Legs with Leveling Ports

5 Barrel Fermenter Includes:

• Top Manway or Side Shadow less Manway
• Racking Port with Tri-Clover Butterfly Valve
• Discharge Port with Tri-Clover Butterfly Valve
• 2 Tri-Clover Outlets with Butterfly Valves
• CIP Arm and Spray Ball
• Sample Valve
• Pressure Gauge
• Safety Valve
• Thermowell with Tank Thermometer

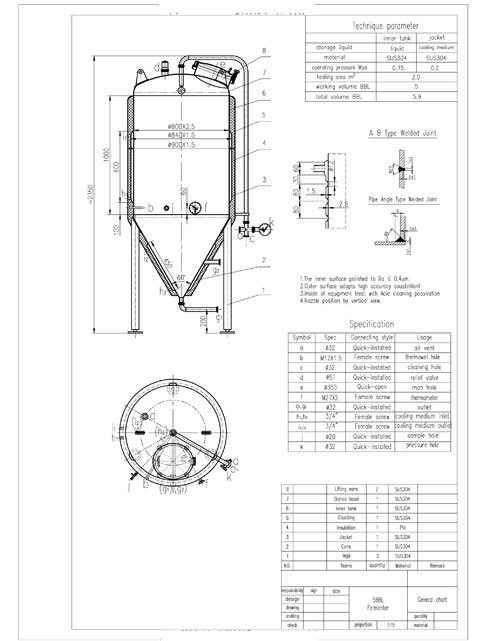

Specifications:

• Working Capacity: 5 Barrels (155 Gallon)
• Inner Diameter: 800 mm (31.5")
• PU Insulation: 50 mm (2")
• Outside Diameter: 900 mm (35.4")
• Cylindrical Height: 1000 mm (39.4")
• Total Height: 2500 mm (98.4")
• Dimension: L x W x H 900 x 900 x 2500 mm (35.4" x 35.4" x 88.4")
• Thickness: Inner Shell: 2.5 mm, Dimple Jacket: 1.5 mm, Cladding: 1.5 mm
